    swc 温度保险丝 SW-1
    Application field
    下一个产品 上一个产品

    Details

    SW-1 Series

    > 产品介绍 > SW-1 Series

    S.W.C Thermal Cutoff SW-1 Series Specification

    额定温度

    Cat NO.TfCutoff temperatureThTm (VDE)K-markULC-ULVDETUVCCCPSE
    SW-102T72℃70℃+2℃,-2℃57℃200℃●●●●●●●
    SW-105T77℃77℃+0℃,-4℃62℃200℃●●●●●●●
    SW-109T*84℃84℃+0℃,-5℃69℃180℃●●●●●●●
    SW-152T*90℃90℃+0℃,-4℃75℃180℃●●●●□●●
    SW-106T*91℃91℃+0℃,-4℃76℃180℃●●●●□●●
    SW-153T*93℃93℃+0℃,-5℃78℃180℃●●●●□●●
    SW-104T98℃98℃+2℃,-2℃83℃190℃●●●●●●●
    SW-108T*100℃100℃+0℃,-5℃85℃190℃●●●●●●●
    SW-155T104℃104℃+0℃,-5℃89℃190℃●





    SW-110T*109℃109℃+0℃,-5℃94℃190℃●●●●●●●
    SW-136T110℃110℃+0℃,-5℃95℃119℃●





    SW-119T115℃119℃+0℃,-5℃104℃190℃●





    SW-111T*121℃121℃+0℃,-5℃106℃200℃●●●●●●●
    SW-115T126℃126℃+0℃,-4℃111℃200℃●●●●●●●
    SW-129T128℃128℃+0℃,-5℃113℃200℃●●●●●●●
    SW-114T*139℃139℃+0℃,-4℃124℃200℃●●●●●●●
    SW-130T141℃141℃+0℃, -4℃126℃200℃●□□□□□□
    SW-138T*144℃144℃+0℃,-5℃127℃260℃●●●●●●●
    SW-116T152℃152℃+0℃,-4℃137℃270℃●●●●●●●
    SW-120T167℃167℃+0℃,-4℃152℃280℃●●●●●●●
    SW-118T169℃169℃+0℃,-5℃154℃280℃●




    		●
    SW-127T184℃184℃+0℃,-6℃169℃220℃●●●●●●●
    SW-122T192℃192℃+3℃,-3℃177℃300℃●




    		●
    SW-125T195℃195℃+0℃,-6℃180℃300℃●●●●●●●
    SW-139T*216℃216℃+0℃,-6℃200℃370℃●●●●●●●
    SW-124T*228℃228℃+0℃,-6℃200℃370℃●●●●●●●
    SW-128T*240℃240℃+0℃,-6℃200℃370℃●●●●●●●

    UL file NO : E126429 ● = Approved □ = Applied
    *Dual Rations(UL approved) - 250V 10A and 125V 15A

    额定参数

    • - 额定电压 : 250V, ac (and 125V)
    • - 额定电流 : 10A (and 15A)
    • - 频率 : 50 or 60Hz
    • - 最大容许熔断电流（切断电流） : 250V, ac 15A
    • - 瞬间过载电流 : dc current pulses, with an amplitude 150 A and a duration of 3 ms with 10 s intervals, are applied for100 successive cycles through the current path.

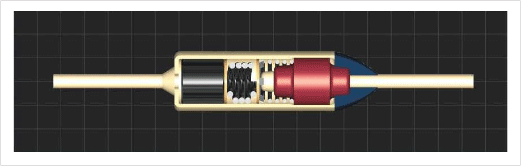

    结构

    外形

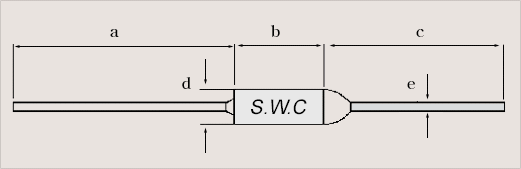

    dimension(mm)abcde
    long35.0 ±3.010.5 ±0.535.0 ±3.04.0 ±0.051.0
    medium22.0 ±3.010.5 ±0.525.0 ±3.04.0 ±0.051.0
    short18.0 ±3.010.5 ±0.520.0 ±3.04.0 ±0.051.0
    special65.0 ±1.010.5 ±0.540.0 ±1.04.0 ±0.051.0

    印刷

    • 各温度保险丝外壳上印刷如下内容 :
    • - 商标 : S.W.C.
    • - 产品序号 : SW - 1XXT
    • - 额定参数 : 电压(250 V), 电流(10 A), 熔断温度(℃)
